IoT - MQTT协议初探

工具

Nmap

探测订阅消息

```shell
nmap <主机> -p1883 --script=mqtt-subscribe.nse
```

如不存在未授权则结果为

PORT     STATE SERVICE
1883/tcp open  mqtt
|_mqtt-subscribe: Connection rejected: Not Authorized

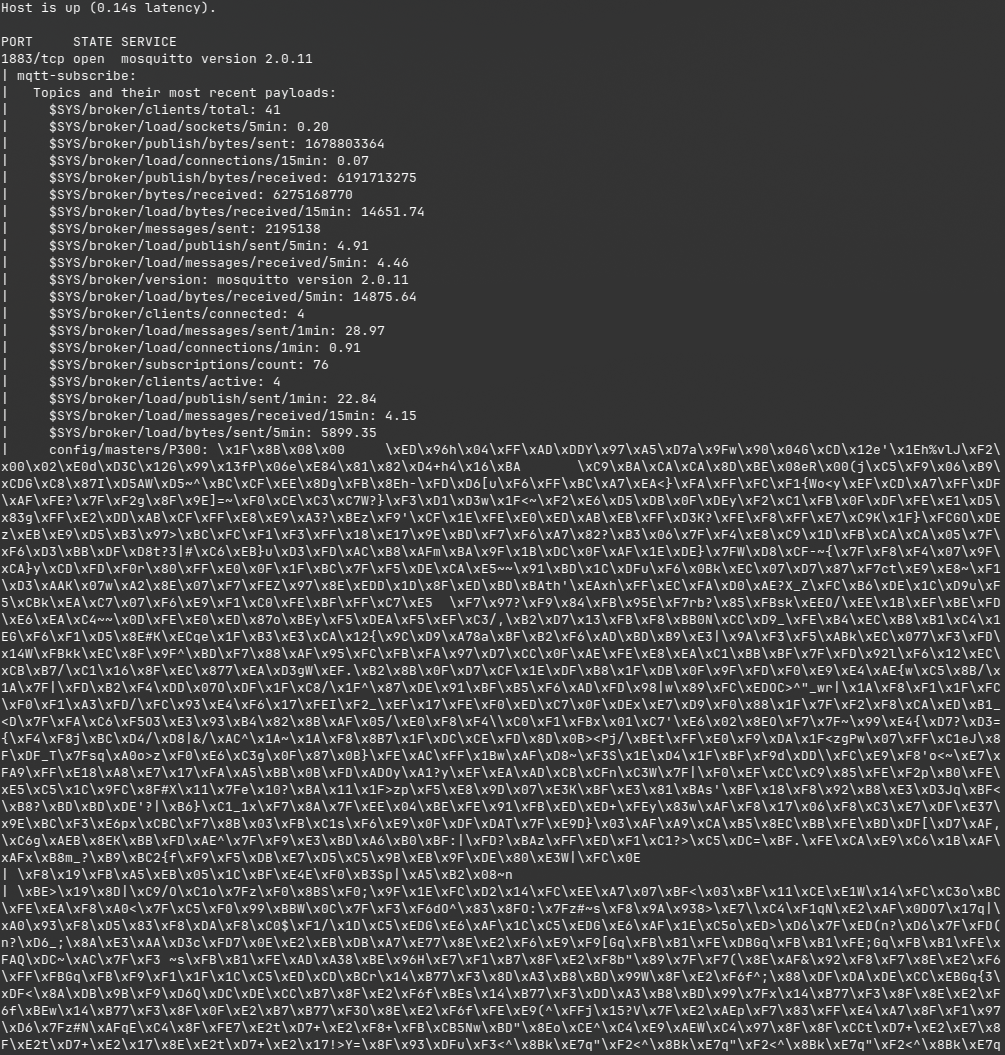

存在未授权则会显示

PORT     STATE SERVICE
1883/tcp open  xxx version x.x.x
| mqtt-subscribe:
|   Topics and their most recent payloads:
|    ……
|_ ……

如：

mqtt-pwn

由于仓库太久没更新，很多依赖只能在Python 3.6下安装，并且还需要PostgreSQL数据库才能启动，所以使用Docker部署启动最快捷省事

安装

1. 克隆仓库

   git clone https://github.com/akamai-threat-research/mqtt-pwn.git


2. 修改Dockerfile文件
   因为jessie版本已经停止支持，所以需要修改源为archive.debian.org
   • 在 RUN apt-get update 前加入如下代码：RUN mv /etc/apt/sources.list /etc/apt/sources.list.bak && echo "deb http://archive.debian.org/debian/ jessie main" >/etc/apt/sources.list && echo "deb-src http://archive.debian.org/debian/ jessie main" >>/etc/apt/sources.list && echo "deb http://archive.debian.org/debian-security jessie/updates main" >>/etc/apt/sources.list && echo "deb-src http://archive.debian.org/debian-security jessie/updates main" >>/etc/apt/sources.list
   • 在apt-get install后添加 --force-yes
     修改后Dockerfile如下：

   FROM python:3.6-jessie

   RUN mv /etc/apt/sources.list /etc/apt/sources.list.bak && echo "deb http://archive.debian.org/debian/ jessie main" >/etc/apt/sources.list && echo "deb-src http://archive.debian.org/debian/ jessie main" >>/etc/apt/sources.list && echo "deb http://archive.debian.org/debian-security jessie/updates main" >>/etc/apt/sources.list && echo "deb-src http://archive.debian.org/debian-security jessie/updates main" >>/etc/apt/sources.list


   RUN apt-get update
   RUN apt-get install --force-yes software-properties-common less vim -y

   ENV INSTALL_PATH /mqtt_pwn
   RUN mkdir -p $INSTALL_PATH
   WORKDIR $INSTALL_PATH

   COPY requirements.txt requirements.txt
   RUN pip install -r requirements.txt

   COPY . .


3. 构建mqtt-pwn

   docker-compose up --build --detach

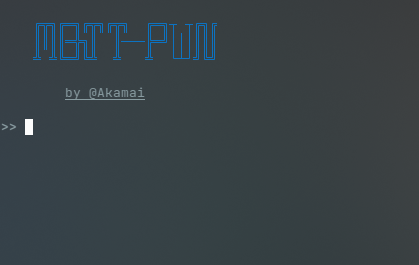

4. 运行mqtt-pwn

   docker-compose run cli

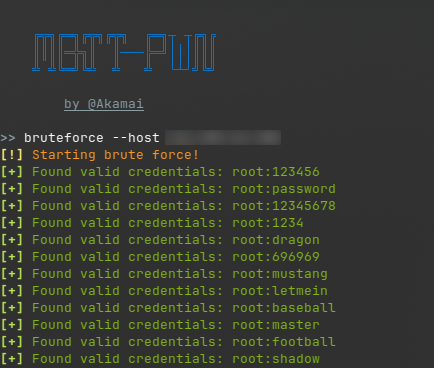

爆破

bruteforce --host <主机> --port <端口>

参考文章

记录一次对MQTT协议的渗透测试经历 - spmonkey

---
